The automotive and industrial sectors heavily rely on air hose springs to operate high-pressure fluid conveyance systems. The structural components maintain both operational reliability and structural integrity of hose assemblies when they experience dynamic conditions. The components serve a purpose that goes beyond physical support because they maintain hose shape while stopping collapse and reducing mechanical strain.
The company Meichen stands out as a top global partner because of its specialized knowledge in automotive fluid systems. Shandong Meichen Industry Group Co.,Ltd. operates from the High-tech Industrial Park of Zhucheng City within Shandong Province. The company Meichen operates with 1800 staff members across 300,000 square meters of production area to deliver suspension systems and vibration reduction solutions and fluid delivery systems. The company operates with 120 expert R&D staff who provide complete in-house design and manufacturing services for global OEMs while meeting specific application requirements.
Why Is an Air Hose Spring Critical in High-Pressure Applications?
High-pressure systems require air hose springs as fundamental components which determine both operational efficiency and system safety. Spring reinforcements serve as essential components for maintaining consistent performance in systems that expose hoses to pulsating pressures and vibration and thermal cycling and restricted routing areas.
Structural Support and Flexibility Under Pressure
Hoses used in high-pressure applications need to maintain their structural integrity while enabling flexibility for bending or movement. The spring element provides both axial stiffness and radial flexibility to the hose. The hose maintains its shape under internal pressure because its spring design enables flexibility while preventing buckling or deformation.
The spring functions as a structural base which takes in mechanical stress that results from pressure surges and outside forces. The ability to absorb pressure changes makes the system crucial for turbochargers and intercoolers in automotive applications.
Prevention of Hose Kinking and Collapse
The bending or vacuum exposure of unsupported hoses leads to kinking as their main failure mechanism. The internal diameter of an air hose spring remains constant through bends and tight radii to prevent kinking. The hose maintains its internal diameter to allow free flow of air or fluid through tight spaces that require sharp turns.
Enhancement of Safety and System Reliability
The failure of systems because of hose ruptures or collapses results in severe engine damage and dangerous leaks. The implementation of air hose springs creates operational safety through their ability to maintain structural integrity under different operating conditions.
How Does an Air Hose Spring Improve System Durability?
The ability of a product to withstand service life depends on its ability to perform at its best while enduring mechanical fatigue and environmental exposure and thermal stress. The durability of air hose springs plays a crucial role in maintaining system performance.
Resistance to Mechanical Fatigue
The process of repeated flexing leads to material deterioration through the formation of micro-cracks. The proper design of springs helps to distribute stress throughout the hose structure which reduces the formation of specific wear areas.
The resistance to cyclic loading helps extend the lifespan of components which need to operate under demanding conditions in commercial vehicles.
Protection Against Abrasion and External Impact
The contact between engine components and chassis parts leads to external abrasions which damage the hose structure. The protective function of springs includes absorbing frictional forces which prevents these forces from reaching the hose wall.
The outermost layer of the tire provides initial protection against mechanical damage when operating off-road vehicles or construction equipment that frequently encounter impacts.
Maintenance of Optimal Flow Path Geometry
The system maintains laminar flow characteristics because of consistent internal cross-sections. The system experiences two major problems when deformations occur because they create pressure drops and turbulence which harm engine performance.
The springs function to preserve the best possible path geometry when the vehicle operates with extreme routing patterns which are common in small engine compartments.
What Are the Key Design Considerations for Air Hose Springs?
The design of an efficient air hose spring needs more than wire gauge selection because it must match the particular needs of each application through temperature range and chemical compatibility and spatial and integration requirements.
Material Selection for High-Pressure Environments
The selection of materials determines how well a component resists corrosion and its tensile strength and elasticity modulus and thermal stability properties. The elevated temperature resistance of stainless steel makes it the preferred material for exhaust manifold and turbocharger unit applications.
Dimensional Compatibility with Hose Assemblies
The spring needs to maintain a secure fit inside or around the host hose to prevent any interference when the hose expands or contracts. The design of coil pitch and wire diameter and free length versus compressed length requires optimization according to predicted pressure loads and bending radii.
The spring coils and inner hose wall experience chafing because of dimensional mismatches which results in faster wear instead of preventing it.
Integration with Fluid Delivery Systems from Meichen

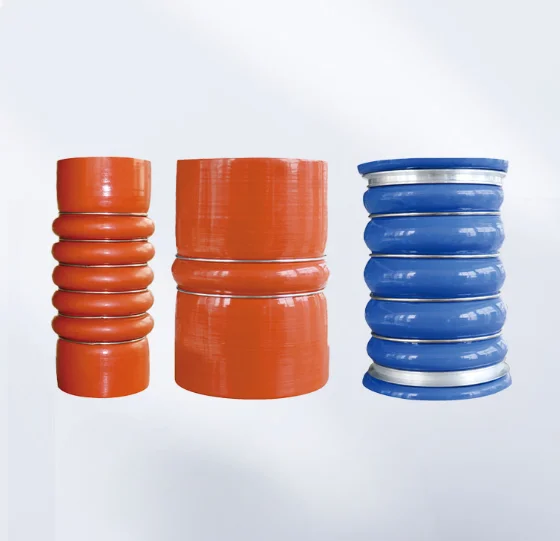

The automotive rubber hose functions as a common hose which serves multiple applications across different automotive systems. The automotive industry employs this hose in their cooling systems and fuel systems and intake systems and turbocharging systems. The integration of air hose springs into advanced fluid delivery architectures from Air Intake Systemproducts1 enables perfect system compatibility between turbochargers and intercoolers and oil mist separators and crankcase ventilation systems.
Where Are Air Hose Springs Commonly Applied in Automotive Systems?
The modern vehicle integrates hose springs into essential operational areas that need to handle demanding daily conditions while maintaining flexible performance.
Integration in Engine Air Intake Systems
The springs in turbocharged engines preserve airflow path structure during throttle-off vacuum conditions and subsequent boost pressure increases during acceleration because they maintain duct shape stability throughout these operational phases. The product functions as a connection point between the air filter and turbocharger and intercooler and engine to transmit gas mixture of oil and gas.
Use in Suspension and Vibration Reduction Assemblies
The oil-air mixture hoses inside fluid dampers need reinforced pathways that can handle dynamic movement while preventing rupture during the repeated suspension articulation cycles which occur on rough terrain vehicles. The company specializes in creating vibration reduction systems.
Implementation in Commercial Vehicle Fluid Delivery Lines
The operational needs of commercial fleets require extended service life with reduced maintenance time so all components including coolant pipes and crankcase ventilation tubes need to withstand long distances without breaking down from fatigue cracks that develop through unreinforced bends and heat soak damage. The product range includes passenger cars and commercial vehicles and construction machinery.
How Can Engineers Collaborate with Meichen for Customized Solutions?
The first step of customization requires effective communication which becomes more efficient through direct technical support to solve problems faster and decrease development cycle times.
Access to a Professional R&D Team with Over 120 Experts
Your team works with domain specialists who contribute their extensive cross-functional experience spanning decades to each project scope for tasks ranging from coil pitch geometry optimization to material blend validation against new fuel additives. The company employs more than 120 experts who form its professional R&D team.
Tailored Product Development Based on Application Needs
Each application requires unique solutions because we start with complete requirement mapping which leads to multiple prototyping cycles until we reach reliable performance benchmarks. Our intake solutions are available for your specific use case requirements.
Direct Communication Through Meichen’s Global Contact Channels
Engineers can reach out for immediate support through Meichen’s official global contact channels, including phone, email, and instant messaging. The team provides quick assistance across all time zones, ensuring fast responses and reliable technical support whenever needed.
FAQ
Q1: What is an air hose spring and why is it important in high-pressure systems?
A: An air hose spring is a critical component used in high-pressure systems to maintain the structural integrity of hoses, prevent kinking, and enhance durability by absorbing the stress caused by the high-pressure environment. It ensures consistent and safe fluid and air transfer, even under challenging conditions.
Q2: How does an air hose spring improve system performance?
A: An air hose spring improves system performance by providing additional support to the hose, helping maintain the correct shape under pressure. This results in less risk of failure or leakage, especially in systems with high pressure or harsh conditions, ensuring longevity and reliability.
Q3: What materials are typically used for air hose springs?
A: Air hose springs are commonly made from materials like stainless steel, carbon steel, and sometimes high-strength polymers, depending on the required strength, flexibility, and resistance to corrosion or wear. The choice of material ensures the spring can withstand the specific pressure and environmental conditions of the system.
